Brief introduction:The latest aluminum heavy-duty sliding doors, available in rugged sizes 66x66 and 66x26. Enhance your space with durable design and modern features, ensuring the perfect blend of strength and style for modern living.
Embrace modern simplicity to provide superior security, sound insulation and sealing. Our designs separate indoor and outdoor spaces to ensure a safer, more comfortable and more beautiful home.
Our unique handle system has a unique handle that combines elegance with practicality. The anti-roll pulley design of the upper rail ensures quiet stability when pushing and pulling. The stainless steel ultra-low track is wear-resistant, durable and easy to clean, preventing accidental kicking.
Experience the perfect silence brought by the 15A hollow glass design. In addition to the kitchen, our extremely narrow sliding doors easily integrate into the study and bedroom. Its extremely narrow frame perfectly complements each space, creating a simple and sophisticated atmosphere.
The high and low rail design ensures smooth and unobstructed drainage. The new structure is simple. The high and low rails of the split design are removably connected via connectors. All windows can be installed indoors at one time. Safer operation, better dust protection and better insulation. Very good.
The embedded frame packaging fan structure design can obtain a beautiful sealing effect. The push-pull type is light and smooth, with strong stability, effectively avoiding the shaking phenomenon of the pulley fixed on the doors and windows, improving the installation speed of the door and prolonging the service life.
Simple lines and light luxury design present a simple beauty. The two set off each other, and every millimeter has been carefully considered to create a comfortable and transparent living space
product attributes | |
wall thickness | 1.8 mm |
Front end of door leaf | 66 mm/26 mm |
portal leaf thickness | 40Mm |
Two-track frame width | 107 mm |
Three-track frame width | 160 mm |
Front width of outer frame | 36 mm |
Standard glass | 5G + 15A + 5G standard black fluorocarbon integrated curved hollow aluminum strip |
push-pull | Dual Track, Triple Track, Triple Track Yarn |
Track style | Low Orbit |
Hardware standard configuration | High-end custom sliding door lock, silent pulley |
color | Black, gray, white, gold |
material | Aluminum, glass |
Reasonable size (width) of the push-pull fan | Maximum power: |
Apply to | Study, bedroom, kitchen, bathroom, clothing, and other interior partitions |
lead time | 15-20 days |
Packaging and distribution

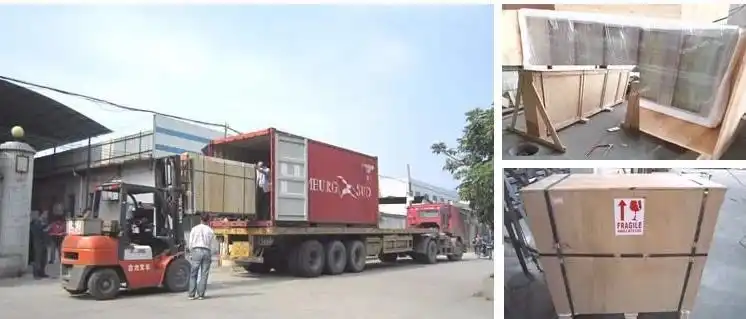

In order to protect the goods, we must pack at least three layers. The first layer is film, the second layer is carton or woven bag, and the third layer is carton or plywood box.
玻璃：胶合板箱，其他部件：用气泡袋覆盖，包装在纸箱中。
fAQ
What is a 66 series heavy-duty aluminum sliding door?
This is a heavy-duty sliding door with a frame width of 66mm, a thickened profile, strong load-bearing capacity, well-sealed and windproof, suitable for large balconies and exterior doors.
2 What aluminum alloy is used?
Building grade 6063-T5 aluminum profile, thickened wall, stable and not easy to deform.
What is the standard frame width?
Both series have a frame width of 66mm, making them compatible with most wall openings.
What is the maximum size of each panel?
The width of the bicycle door panel can reach 1000-1300 mm and the height is 2800-3500 mm.
How many tracks and panels are there?
Usually 2/3 rails, 2/3/4 panels, slide to one side or both sides.
6 Standard glass configuration?
Double tempered insulating glass 5 + 12A + 5/5 + 18A + 5/6 + 18A + 6.
7 What glass options are available?
Scrub, pattern, dyeing, low emissivity, laminated glass, argon filling, etc.
8 Is the glass safety certified?
All glass is fully tempered safety glass, meeting international building safety standards.
What kind of track structure is 9?
Stainless steel heavy-duty track, low track, stable sliding, good drainage.
How much can each panel withstand?
Heavy duty systems carry 80 to 120 kilograms per door panel.
11 Slide smoothly or get stuck easily?
Equipped with heavy-duty pulley, smooth sliding, quiet and stable, not easy to derail.
12 Can it resist wind pressure?
It has excellent wind resistance and is suitable for high-rise buildings, villas, and coastal areas.
13 What about waterproofing and sealing?
Multi-layer EPDM sealing strip + hidden drainage cavity, good air tightness and waterproof.
14 How is the sound insulation performance?
The sound insulation effect of soundproof glass can reach 28-38 decibels.
15 What surface treatment?
Standard powder coating, optional fluorocarbon coating, wood grain transfer.
16 What colors can be made?
Any < unk > color will do. Common: white, black, gray, champagne, bronze, wood grain.
17 What hardware is the standard configuration?
Heavy duty pulley, stainless steel track, handle lock, hinge. Optional multi-point lock.
Can it be used for exterior doors?
Yes. Designed for outdoor use. Corrosion resistant, UV resistant and durable.
19 Where is it mainly used?
Villa terrace, balcony, living room, terrace, shopping center, restaurant, large indoor partition.
Can it be used as a bathroom or kitchen?
Yes, aluminum is waterproof and moisture-resistant, making it ideal for humid environments.
21 Can the size and opening direction be customized?
Fully customizable: width, height, number of tracks, glass, color, grille, opening direction.
22 Is it difficult to install?
Factory preloaded with installation drawings, professional workers easy to use.
How long did 23 serve?
For 15 to 30 years of normal outdoor use, the hardware is durable and suitable for long-term use.
24 quality assurance?
Profile and hardware are guaranteed, technical support and spare parts are available.
